Walnut Oil Production Line

Walnut oil is a nutritious edible oil. In the oil production process, hot pressing, cold pressing, or solvent extraction can be used to extract the walnut oil according to the different product requirements.

When purchasing oil pressing equipment, you can choose the appropriate equipment and processing technology based on your own production needs, output, oil mill size, oil quality, production efficiency, and other aspects.

Huatai Group walnut oil processing equipment can retain the nutrition in the walnut kernel and has a high oil yield and low residual oil rate in the cake. The nutrition in the walnut cake is also retained and the cake is well prepared for deep processing. The refined walnut oil is high quality and can be packaged directly for sale.

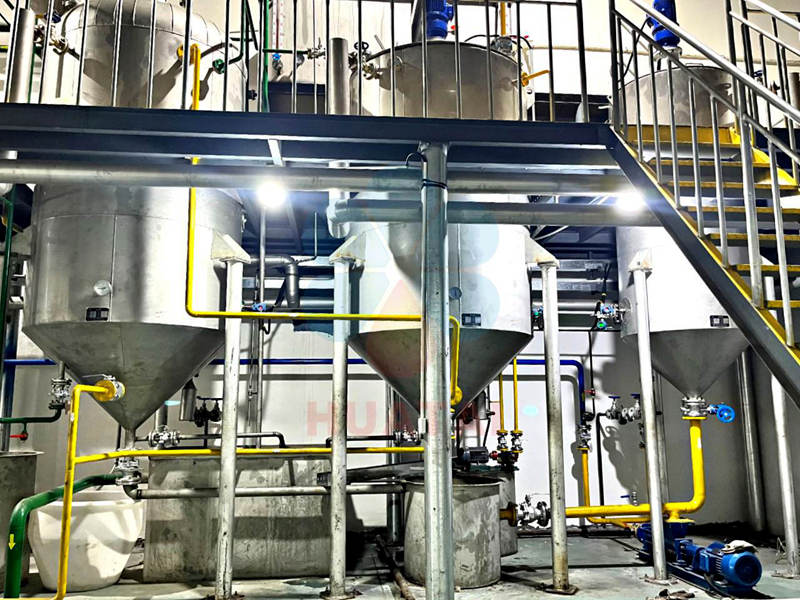

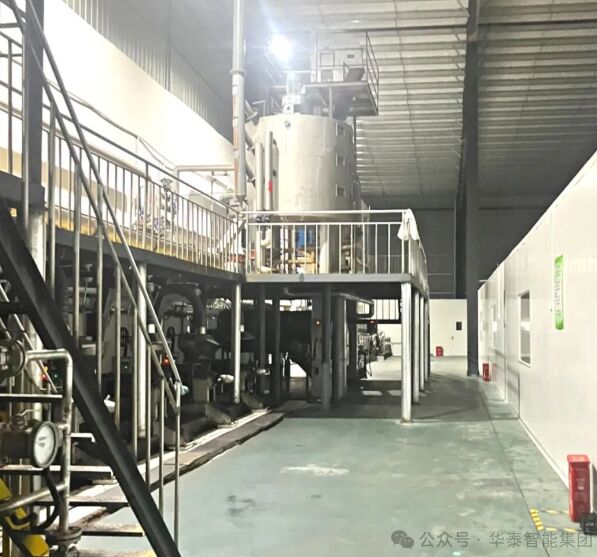

Huatai Group can supply walnut oil production line equipment and turnkey projects suitable for large walnut oil processing plants.

Walnut oil production line

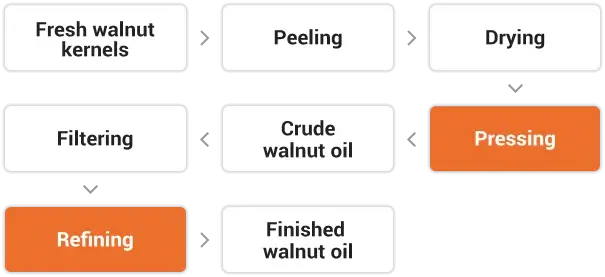

Hot Pressing Method

Walnut Oil Pressing Hot Pressing

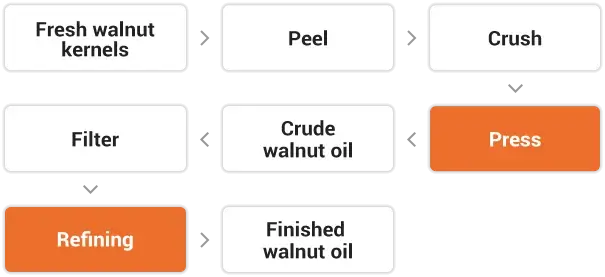

Cold Pressing Method

Walnut Oil Pressing Cold Pressing

WALNUT OIL PRETREATMENT PROCESS

Walnut shelling machine Walnut kernel crushing machine Walnut oil pressing machine
  • Shelling
  • Crushing
  • Pressing

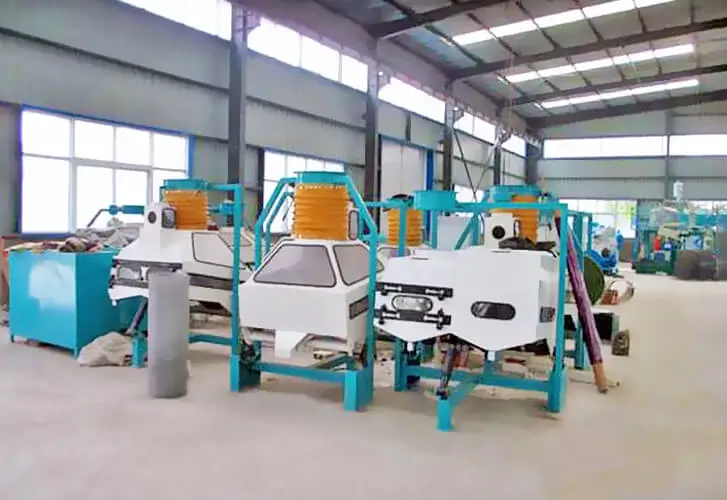

  1. Walnut Shelling

    Select walnuts with full grains and no deterioration, and remove the walnut shells mechanically or manually, trying to avoid damaging the walnut kernels to increase the oil yield.

    The shelled walnut kernels can be screened to remove the remaining broken shells and impurities.

    GET A QUOTE

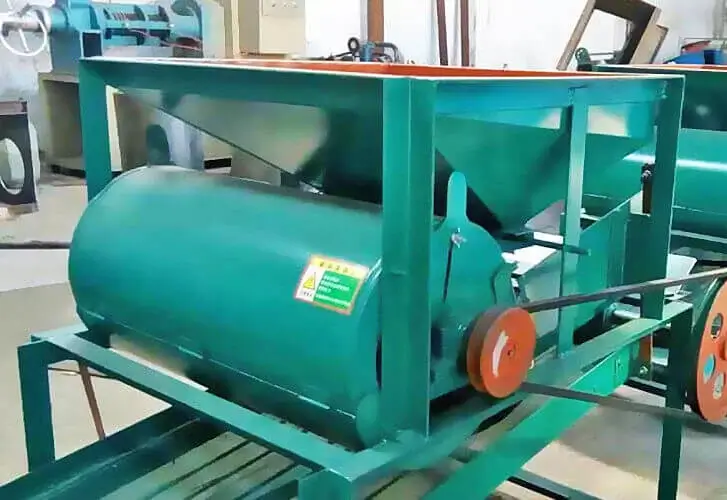

  2. Walnut Kernel Crushing

    Crushing the walnut kernels are into small pieces, generally to a particle size of about 0.5 - 1 cm. This can increase the contact area between the walnut kernels and the oil pressing equipment, which is beneficial to the extrusion of oil.

    GET A QUOTE

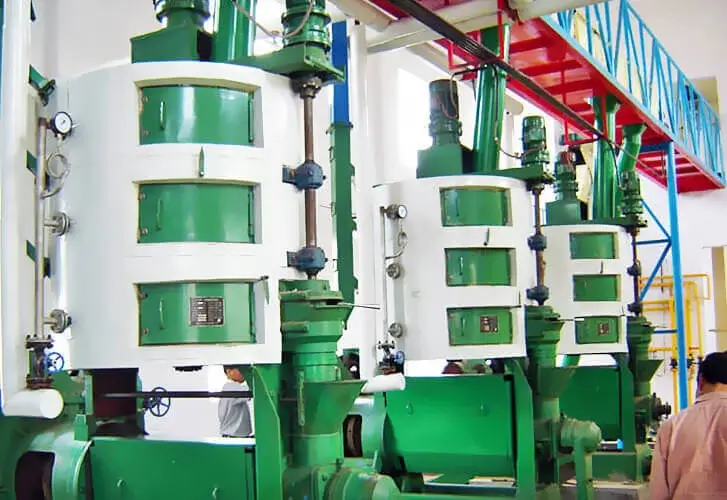

  3. Walnut Oil Pressing

    If use the cold pressing process, the steamed and fried walnut kernels are directly placed in the cold press for pressing. The cold pressing temperature is usually controlled below 60℃, which can retain the nutrients and natural flavor of the walnut oil.

    When hot pressing, the steamed and fried walnut kernels must be heated to 120-130℃ first and then placed in the hot press for pressing.

    GET A QUOTE
Walnut Oil Refining Process
  • Degumming process
  • Deacidification process
  • Bleaching process
  • Deodorization process
REFINING EQUIPMENT

Walnut Oil Refining Process

The filtered walnut oil is refined by the refining equipment to increase the quality of the oil. By degumming, deacidification, decolorization, and deodorization, remove the impurities in the crude walnut oil.

GET A QUOTE

Walnut Oil Refining Process Flow

Walnut Oil Refining Process Flow

WALNUT OIL REFINING PROCESS

  • Degumming Process
  • Deacidification Process
  • Decolorization Process
  • Deodorization Process

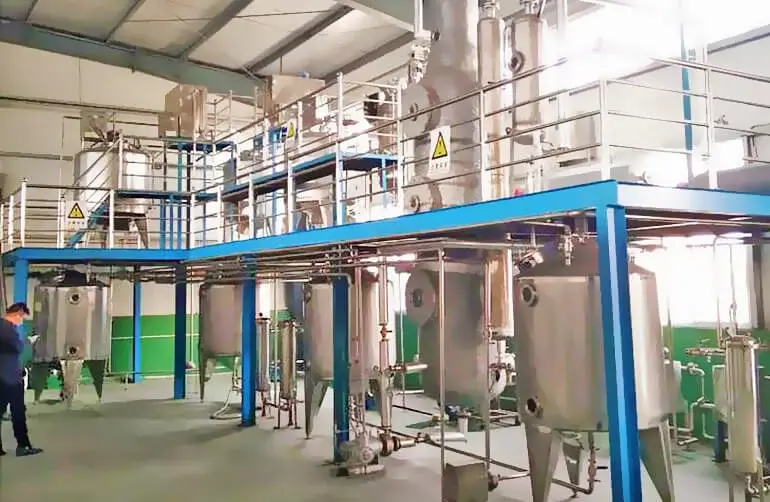

  1. Walnut oil degumming process in refining
    HIGH-QUALITY SOLUTIONS

    Degumming Process

    The walnut oil degumming process removes phospholipids and colloids from the walnut oil. The equipment used is a degumming tank (with stirring and jacket temperature control).

    Phosphoric acid degumming: heat the virgin oil to 75°C, add 0.1%-0.3% food-grade phosphoric acid, and stir for 20 minutes.

    Enzymatic degumming (more environmentally friendly): add phospholipase A₂, react at 45°C for 2 hours to hydrolyze phospholipids.

    Centrifugal separation: speed ≥10000rpm, separate colloids (residual colloid ≤0.1%).

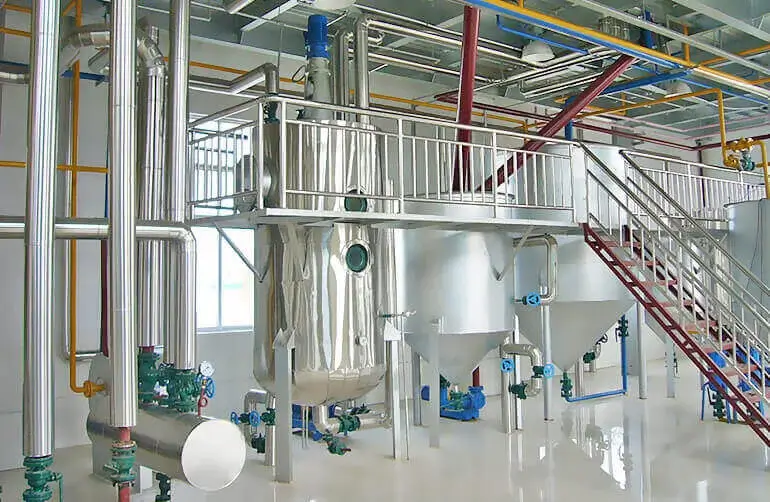

  2. Walnut oil deacidification process in refining
    HIGH-QUALITY SOLUTIONS

    Deacidification Process

    The walnut oil deacidification process neutralizes the free fatty acids in the walnut oil. The equipment used is an alkali refining tank (alkali corrosion resistant material).

    Alkali solution preparation: food grade sodium hydroxide solution (concentration 10%-15%).

    Neutralization reaction: oil temperature 75-85℃, alkali solution slowly sprayed, stirring speed 30-50rpm, soap stock layer thickness ≥10%.

    Water washing: wash 3 times with 80℃ hot water, soap stock residue ≤50ppm.

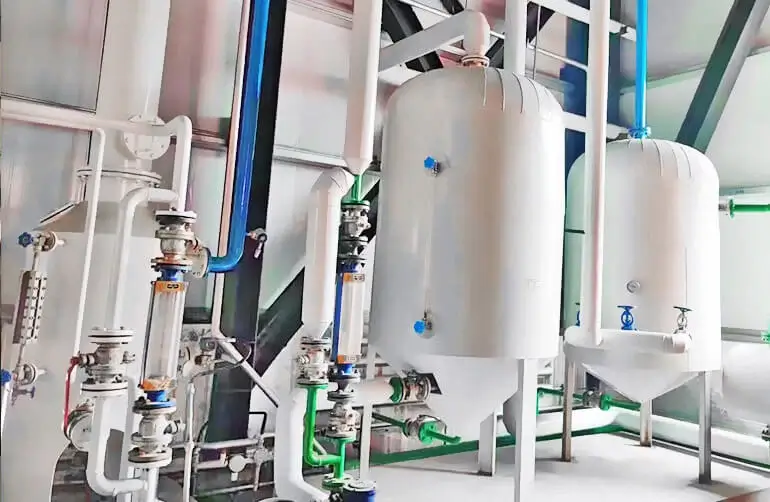

  3. Walnut oil decolorization process in refining
    HIGH-QUALITY SOLUTIONS

    Decolorization Process

    The purpose of the walnut oil decolorization process is to adsorb pigments and impurities. The equipment used is a clay mixer and a vacuum decolorization tank.

    Amount of clay added: 2%-5% (compound of activated clay and attapulgite).

    Temperature: 110-130℃, vacuum degree ≤10Pa.

    Time: 20-30 minutes, oil color after decolorization ≤Y30 R3.0 (Lovibond colorimetric method).

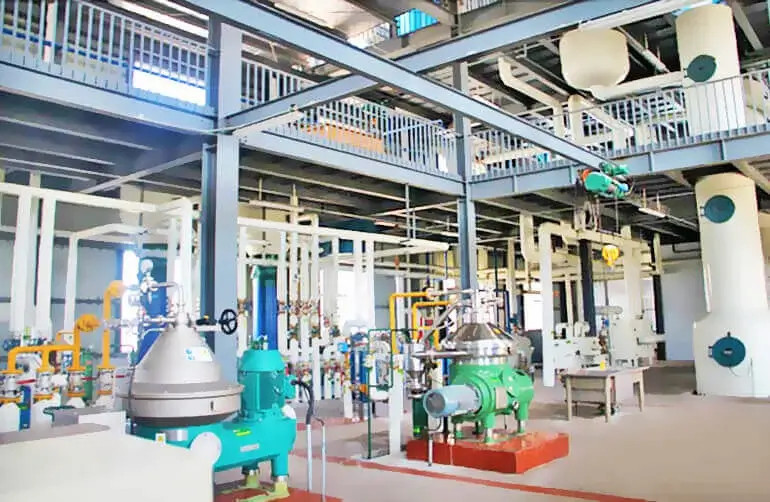

  4. Walnut oil deodorization process in refining
    HIGH-QUALITY SOLUTIONS

    Deodorization Process

    The purpose of deodorization is to remove volatile substances. The equipment used is a molecular distillation deodorization tower or a packed tower deodorization system.

    Vacuum degree ≤ 0.1Pa, temperature 180-220℃, direct steam.

    Deodorization time ≥ 4 hours, free fatty acid removal rate ≥ 99%, odorous substance removal rate ≥ 95%.

Walnut Oil Production Video

5TPD walnut oil press & 3tpd oil refining and 1tpd subcritical extraction high protein plant

The dryer is used to dry and dehydrate walnut kernels, the oil press is used to squeeze walnut oil, and the filter is used to filter a small amount of impurities in the crude oil. The raw material of this project is Hotan walnuts in Xinjiang, China.
