Oil Extraction Equipment

Drag chain extractor

The material can be turned when entering the lower layer from upper layer, and the extraction is more uniform and thorough, the extraction time is short, the solvent content of wet meal is less and the residual oil is low. The driving and driven shafts and self-aligning roller shafts. The drive can be driven by sprocket or hydraulic transmission.

LEARN MORE

Loop type extractor

Continuous oil production equipment that uses organic solvents to dissolve grease to extract oil from oil seed.

LEARN MORE

Rotocel extractor

Rotocel extractor has reliable operation, unique rotor balance design, low power consumpation and high concentration of miscella, good self filtration of fixed material layer, less meal power in mixed oil and good extraction effection.

LEARN MORE

Scraper type extractor

Simple equipment, less investment and less solvent consumption. It is suitable for small scale production enterprises with multiple varieties and small batches.

LEARN MORE

DTDC desolventizer toaster

Good desolvation effect, large processing capacity, low power consumption, small steam consumption and smple manufacturing. The residual solvent in the meal is low, which regulates the moisture of the meal and ensures the lower solvent consumption in prodction and the safe use of the meal.

LEARN MORE

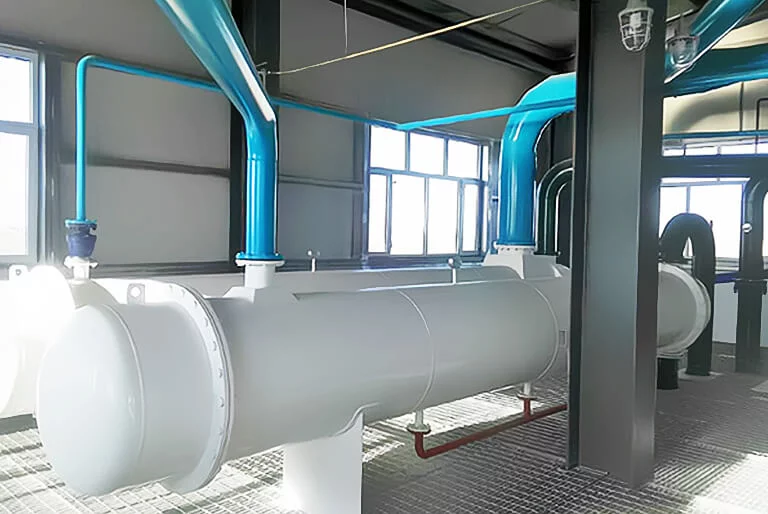

Horizontal condenser

Huatai Group horizontal condensers use double-pass tubes and single-pass tubes, which have higher heat exchange efficiency.

LEARN MORE

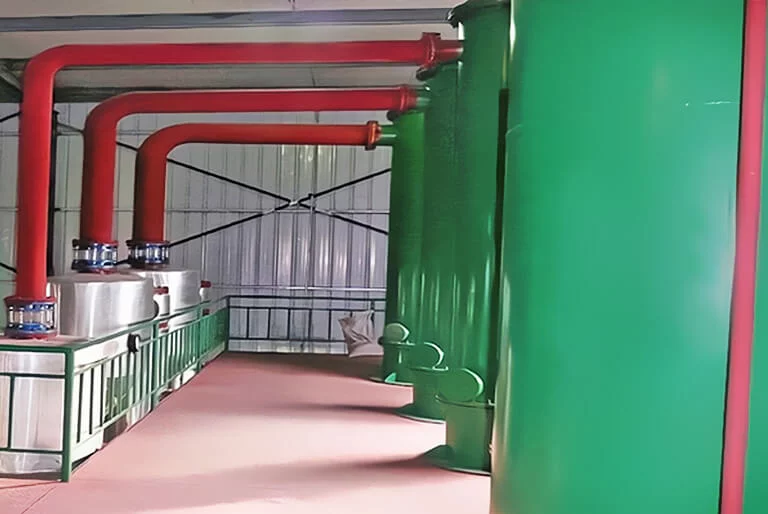

Vertical condenser

Huatai Group's vertical condenser adopts a vertical structure, with 304 stainless steel material inside, and occupies a small area.

LEARN MORE

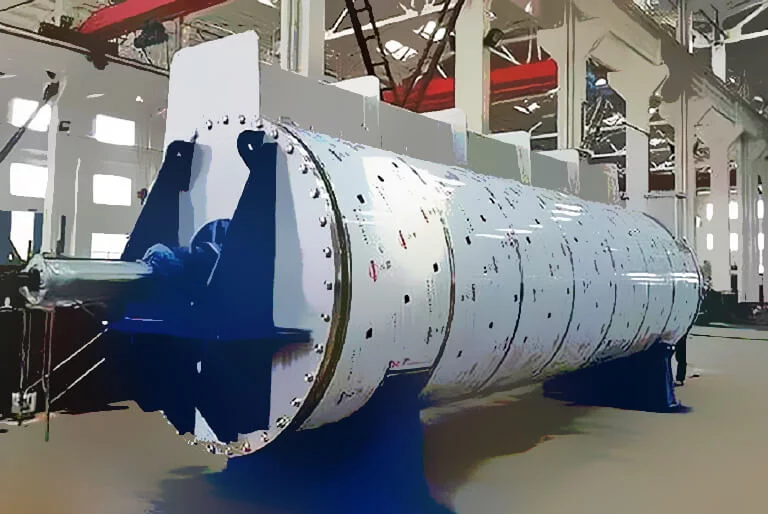

Low temperature disc dryer

Unique design structre, high thermal equivalent efficiency, low energy consumption, smal floor area, simple configuration, convenient operation and control, good operating environment and so on.

LEARN MORE

Stripping tower

A unit operation used to recover the absorbed solute and separate the absorbent from the solute for regeneration. The heat recovered from the stripper can be also used for other purposes, such as producting hot water and preheating boiler make-up water.

LEARN MORE

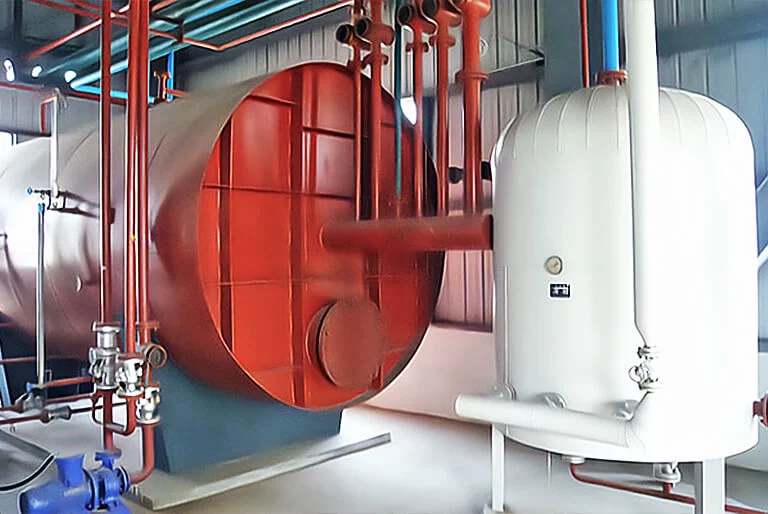

Water solvent separation tank

Unique design structure, small volume, usde for effictive separation of water and solvent, a multi-purpose, used for temporary storage of solvent oil, also can water out, with high efficiency.

LEARN MORE

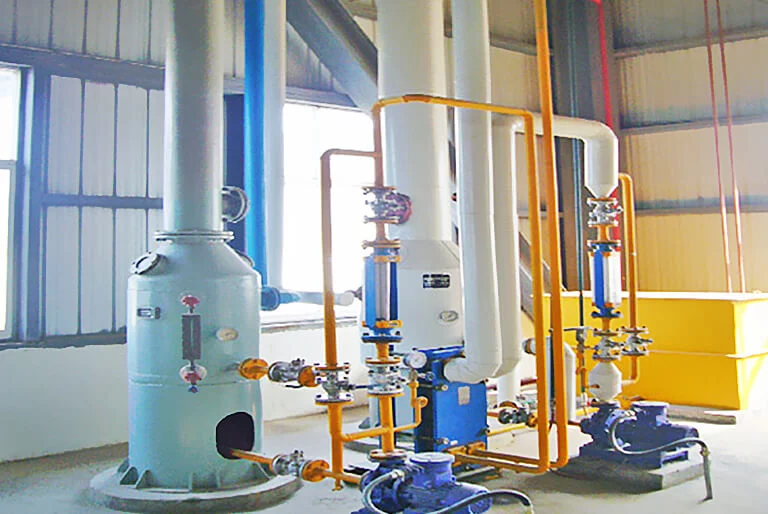

Tail Gas Recovery Syetem

The process has the advantages of high recovery efficiency, long service life of equipment, simple operation, low maintenance cost, low power consumption, etc. At the same, it ensures the micro-negative pressure of the extraction system, and effiectively reduces the phenomenon of running and dripping.

LEARN MORE

Drag chain extractor

Loop type extractor

Rotocel extractor

Scraper type extractor

DTDC desolventizer toaster

Horizontal condenser

Vertical condenser

Low temperature disc dryer

Stripping tower

Water solvent separation tank

Tail Gas Recovery Syetem

Customized Professional Plan
