Palm Oil Mill Processing Line

Huatai Group focuses on palm oil machinery production. Its deep cultivation in this field demonstrates the group's keen insight into market demand and accurate grasp of industry development trends. Palm oil is one of the world's important edible oil resources. Its production and processing process has extremely high requirements for the performance, precision, and stability of mechanical equipment.

Huatai Group's palm oil press machine adopts a unique hydraulic system and intelligent control system, which can automatically adjust the pressing pressure and speed according to different raw material characteristics and production requirements, effectively improving the oil yield and production efficiency.

By introducing advanced manufacturing technologies and materials, Huatai Group's palm oil processing machinery has achieved significant breakthroughs in efficiency, precision, reliability, and environmental protection.

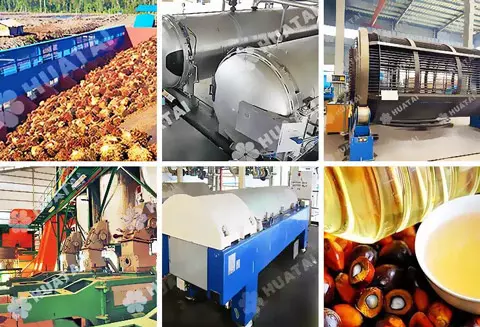

Palm Oil Mill Plant Production Line

Palm Oil Pressing Process

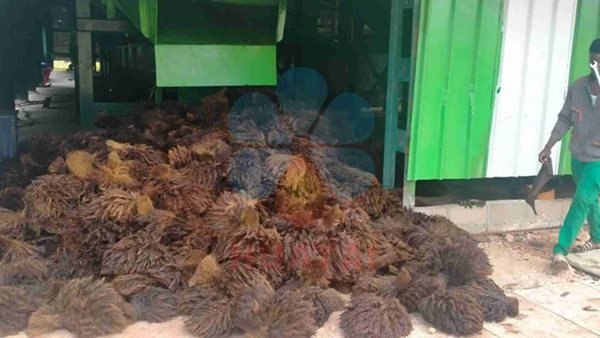

  • Raw Materials Reception Station
    STEP1

    Raw Materials Reception Station

    It is used for temporary storage and unloading fresh palm fruit bunches from palm plantation.

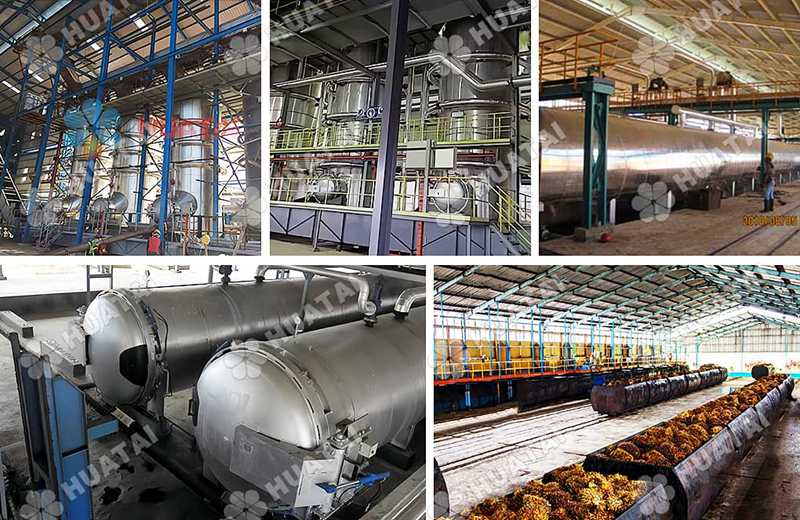

  • Sterilization Station
    STEP2

    Sterilization Station

    Two types of sterilizers can be chosen in palm oil processing. Horizontal fermentation tank, vertical fermentation tank. All use high temperature of 145°C to soften and sterilize the fruit bunches.

  • Threshing Station
    STEP3

    Threshing Station

    Thresher is mainly for separating palm fruit from palm fruit bunches in the palm oil processing line.

  • Digesting & Pressing Station
    STEP4

    Digesting & Pressing Station

    Digester is for crushing palm pulp and breaking the cell of pulp for better effect of pressing palm oil. Palm oil press machine is to extract palm oil from palm fruit.

  • Oil Clarification Station
    STEP5

    Oil Clarification Station

    A vibrating screen, a crude oil clarification tank and a plate filter are generally configured to filter different impurities in the crude oil and clean crude palm oil can be provided.

  • Palm Kernel Recovery Station
    STEP6

    Palm Kernel Recovery Station

    In palm kernel recovery plant, the nuts and fibre will be separated by physical method. The fibre are burned in steam boiler as biomass fuel.

Palm Oil Processing Chart Flow

Palm oil processing chart flow

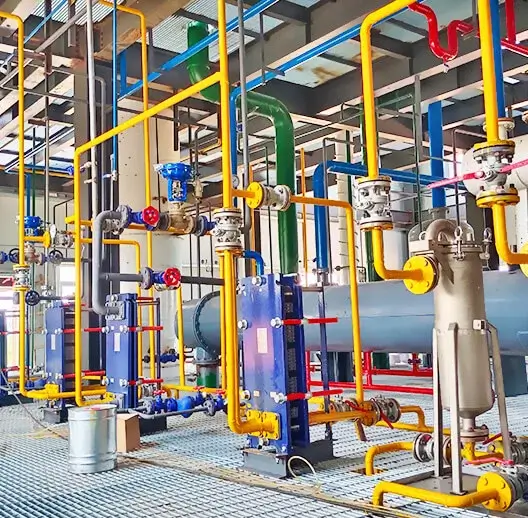

Crude palm oil refinery
  • Batch Refinery Plant
  • Semi-continuous
    Refinery Plant
  • Continuous Refinery Plant
REFINERY PROCESS

Crude Palm Oil Refinery(CPO)

Huatai Group is a leading manufacturer and supplier in palm oil extraction and refinery. We specialize in designing turnkey solutions for extracting palm oil and crude palm oil refining. (Related Post: palm oil refinery machine >>)

There are three common types of edible oil refining process: batch oil, semi-continuous oil, and continuous oil. Each type of refining process can determine the exact size and detailing process of the refinery plant. Our engineer design team will customize a specific refining plan for you based on your budget.

GET A QUOTE

CPO Refining Process

CPO refining process (RBD)mainly includes four steps of degumming, deacidification, bleaching and deodorization.

  • Degumming and
    Deacidification Process

    Through phosphoric acid application, the fatty acid and gum contained in the palm oil and palm kernel oil will be separated from foreign impurities.

  • Bleaching Process

    It adopts vacuum system to remove the impurities and color pigments from the crude palm oil and crude palm kernel oil.

  • Deodorization Process

    The palm oil and palm kernel oil are steamed at a temperature of 240°C to 260°C to get away the odors and tastes.

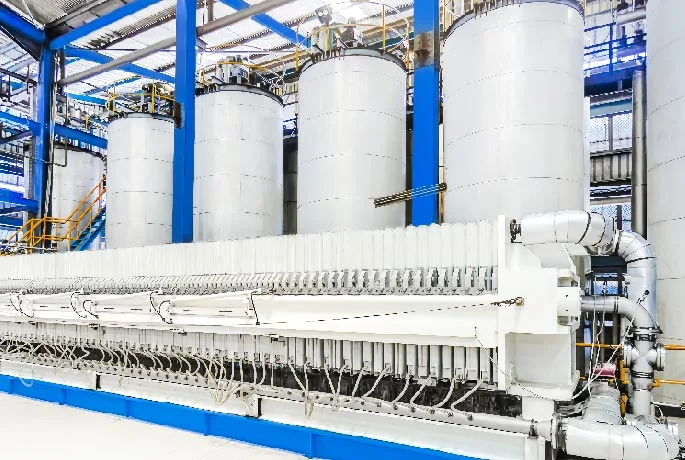

Palm oil fractionation plant

Palm Oil Fractionation Plant

Palm oil is by far the most important fractionated oil in the world; crude, semi- and fully refined palm oil can be fractionated in multi-stage, giving access to several products for specific applications.

The typical fractionation process of palm oil mill is pre-heating, cooling, crystallization, and filtering. (Read more: palm oil fractionation plant >>)

Factors Affecting Fractionation Effect of Palm Oil:

  • Control cooling water temperature;
  • Filling and squeezing pressure;
  • Filter cloth air permeability (400, 600 L/dm2/min);
  • Design of crystallizers.

Henan Huatai palm oil fractionation plant adopts advanced crystallization equipment, filtration equipment, and accurate temperature auto-control software to separate palm olein and palm stearin which can get different melting-point fractionation products, including 18℃, 24℃, 32℃, etc.

1-1000TPD

Palm Kernel Oil Processing Machine

Processing of palm kernels into palm kernel oil involves the cracking of palm nuts, separation of the palm kernel shells from the cracked mixture (Kernels and Shells), washing, cleaning, crushing and the extraction of palm kernel oil.

Palm Kernel Shell Cracker Machine Features:

  • It is suitable to crack kernel in different sizes and hardness.
  • High shucking rate above 95% and low breaking rate less than 1%.

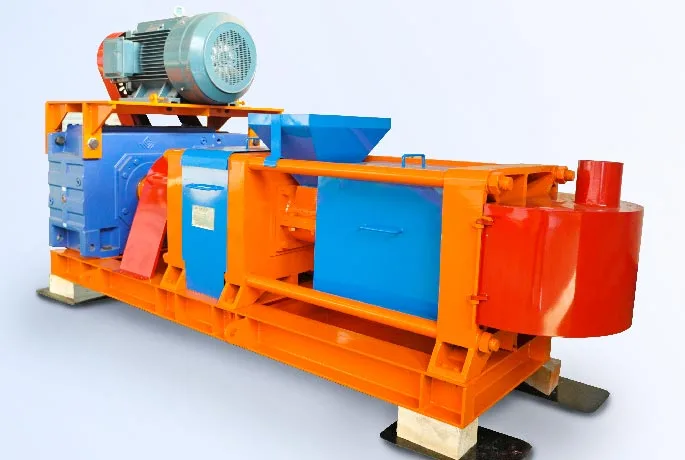

Palm kernel oil processing machine

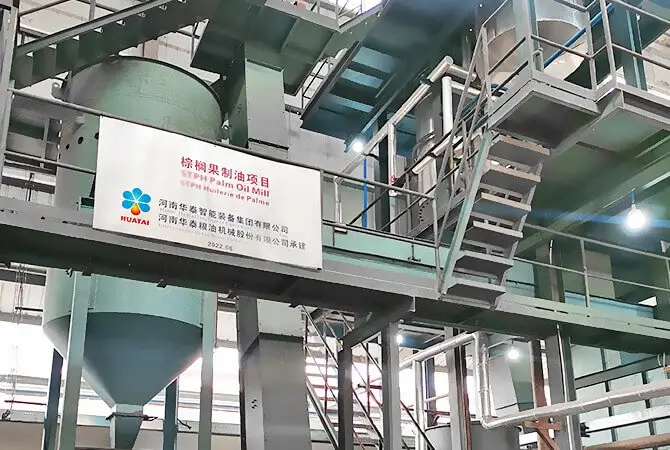

Huatai Palm Oil Mill Plant Machine
HIGH-QUALITY SOLUTIONS

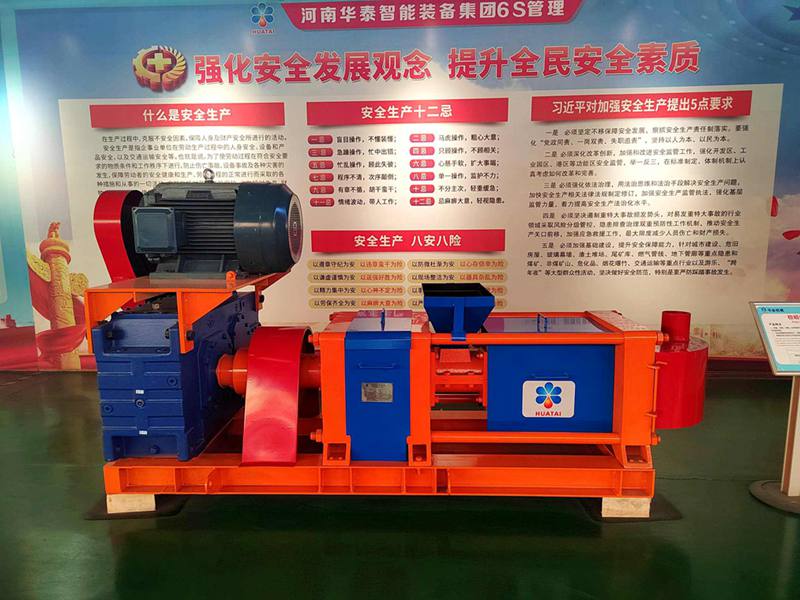

Huatai Palm Kernel Oil Press Machine

  1. The squeezing screw, squeezing chamber, cake ring and cake cone sleeve are all precision cast from wear resistant cast steel, which has been quenched and nitrided to improve wear resistance and durability.
  2. By adopting a special design with variable pitch, the oil yield has been improved.
  3. The squeezing chamber adopts a split design with a crushing device added in the middle for easy maintenance.

Palm Oil Production Video

Palm Oil Milling Plant

Huatai oil machinery can provide a whole palm fruit/palm kernel oil mill plant production line for you, if you have a lot of palm fruit to process, you can contact with us. We can offer you a whole line of palm oil pretreatment equipment, palm oil extraction machines, and palm oil refinery machines, and build a palm oil turnkey project from A to Z for you. And we sell single machines too, palm fruit oil pressing machines, palm fruit crushing machines, palm fruit oil fraction machines and so on.
