Rice bran Oil Production Line

Huatai Group provides a series of high-quality, high-performance machinery and equipment for the rice bran oil industry, which has strongly promoted the development of the industry. Our rice bran oil machinery covers the entire process from rice bran raw material processing to solvent extraction and crude rice bran oil refining, forming a complete, rich and unique product series.

In the pretreatment process of rice bran puffing, Huatai adopts advanced wet puffing technology. The pellets after wet expansion treatment have good molding degree, low powderiness, rich internal pores, and excellent solvent permeability, which greatly shortens the leaching time and significantly increases the crude oil production.

This will provide great convenience for the subsequent production and processing of rice bran oil mill plants, and help rice oil plants stand out in the fierce market competition and win more market shares.

Rice Bran Oil Production Line
Rice Bran Oil Extraction Line
  • Rice bran pretreatment
    and expansion workshop
  • Rice bran oil solvent
    extraction workshop
  • Rice bran oil refining
    workshop
EXTRACTION LINE

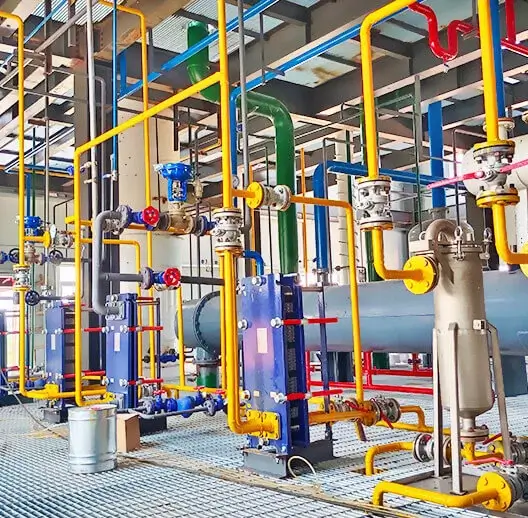

Rice Bran Oil Extraction Line

The rice bran oil extraction line adopts expansion extraction technology to produce rice bran oil. The rice bran oil plant includes a rice bran pretreatment and expansion workshop, a rice bran oil solvent extraction workshop, and a refining workshop. The rice bran oil production line uses the rice bran expander to make the rice bran into porous expanded particles, which improves solvent permeability and extraction efficiency. Using a negative pressure evaporation system and a mineral oil system, it has energy-saving characteristics and good quality crude oil. Physical deacidification and deodorization technology is adopted in rice bran refineries, which has high refining yield, light color, and good quality.

GET A QUOTE

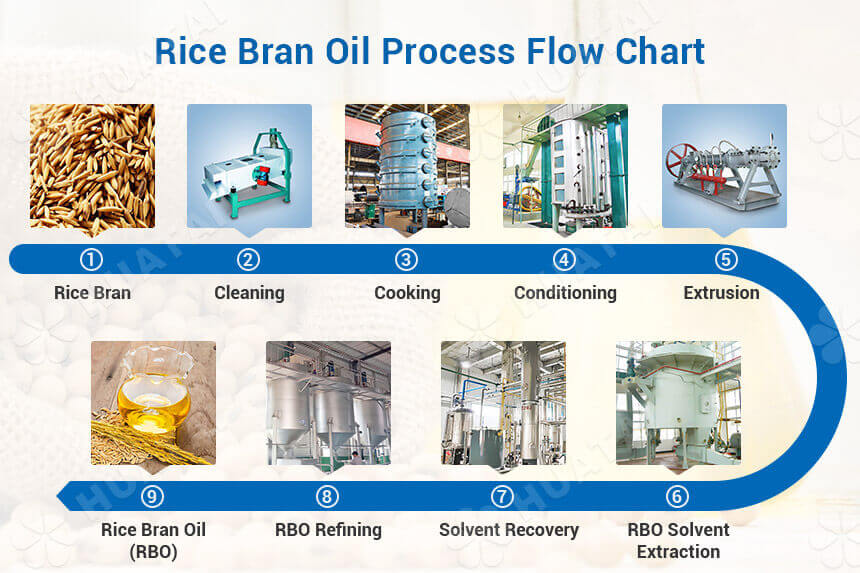

The Process Of Rice Bran Oil Production Line

  • rice bran pretreatment

    Clean out the sand, broken rice, straw ropes, plant straw, and other debris contained in the rice bran to avoid damaging or clogging the extraction equipment and affecting the oil yield. At the same time, the rice bran must be preheated in advance to adjust the moisture and temperature of the rice bran to achieve a suitable state for oil production.

  • rice bran expanding

    Feed the pretreated rice bran into the puffing machine. The powdered rice bran undergoes high pressure, friction, expansion, etc. to change the shape of the rice bran and polymerize it into a porous and air-permeable columnar shape. structure. After expanding, the cell tissue of rice bran is destroyed and the internal pores are larger, which is conducive to solvent extraction. Adopting expansion technology in the rice bran oil production line can increase extraction efficiency, reduce residual oil rate in the meal, increase the capacity of the oil extractor, reduce power consumption, and improve the quality of the extracted rice bran oil.

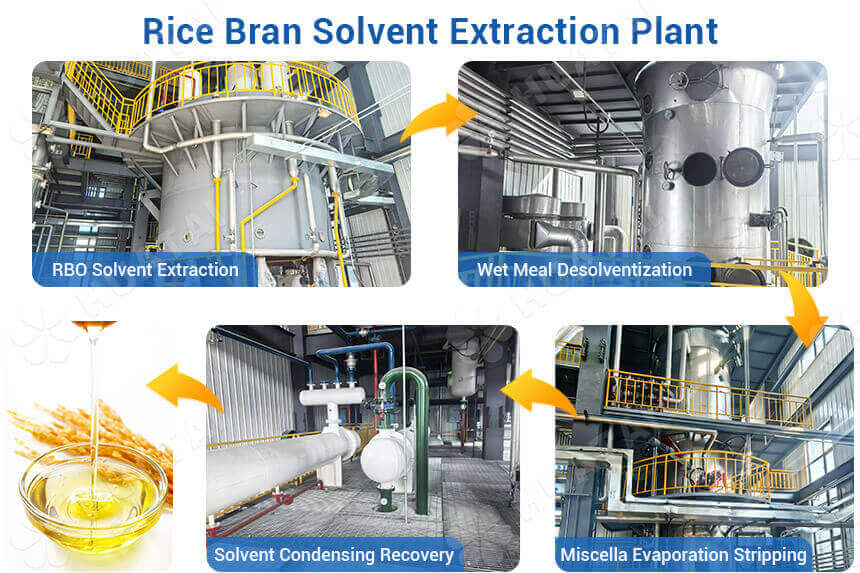

  • rice bran oil extraction

    The expanding rice bran particles enter the extractor and are extracted with organic solvents to obtain mixed oil. The solvent is evaporated through evaporation and stripping to obtain crude rice bran oil. After rice bran oil is extracted by the solvent, rice bran becomes bran meal, which is evaporated by the solvent and becomes the finished meal.

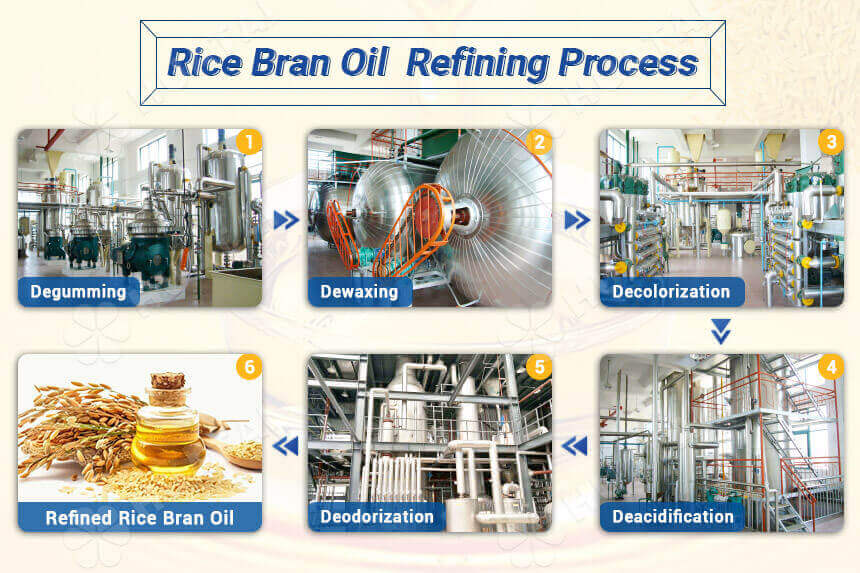

  • rice bran oil refining

    Huatai bran refining process uses physical refining, including hydration degumming, washing, drying, decolorization, filtration, deacidification, deodorization, dewaxing, and other processes. The rice bran refining device developed and produced by Huatai Oil Machine can reduce the refining amount of caustic soda and activated carbon, and can also reasonably reduce the peroxide value to avoid oil discoloration and acid return in the process of high-temperature deodorization.

  1. Pretreatment

    Clean out the sand, broken rice, straw ropes, plant straw.

    pretreatment icon pretreatment icon
  2. Expanding

    Feed the pretreated rice bran into the puffing machine.

    expanding icon expanding icon
  3. Extraction

    The expanding rice bran particles enter the extractor.

    extraction icon extraction icon
  4. Refining

    Huatai rice bran refining process uses physical refining.

    refining icon refining icon

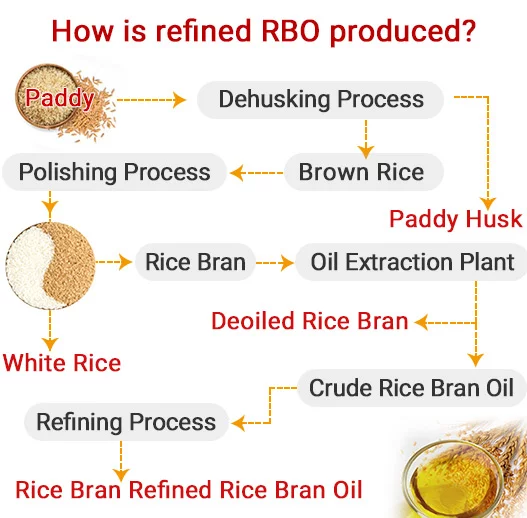

Rice bran oil refining and complete sets
  • Improve production efficiency
  • Ensure product quality
  • Meet market demands
OBTAINED MULTIPLE PATENTS

Huatai Cereals And Oils Machinery

Henan Huatai Cereals And Oils Machinery Co., Ltd. has obtained a number of patents in rice bran oil production lines, including the production method of first-grade rice bran oil refining and complete sets of first-grade rice bran oil refining equipment. We have set up many rice bran oil mill plants in China and Bangladesh, Cambodia, also received high praise from local customers.

GET A QUOTE

Rice Bran Oil Production Video

Rice bran oil extraction process

Huatai oil machinery can provide a whole rice bran oil production line for you, if you want to produce high-quality rice bran oil, you can contact us, and we can offer you a whole line of rice bran oil pretreatment equipment, rice bran oil extraction machine, rice bran oil refinery equipment, build a turnkey project from A to Z for you.
